Version of Ball Machine
There are three possible versions of the Spinfire ball machine: V1, V2, and V2 Bluetooth. You can identify your machine using the following criteria:
- Purchase Date
If you purchased your machine before 1 October 2020, you have a V1 machine. - Control Panel Color
V1 machines have a white control panel with blue buttons.
V2 and V2 Bluetooth machines have a purple control panel with blue buttons. - Rear Wheel Design
V1 machines have black transport wheels with a blue ring or no markings.
V2 and V2 Bluetooth machines have black transport wheels with white markings. - Distinguishing Between V2 and V2 Bluetooth
If you have determined your machine is either a V2 or V2 Bluetooth, use the points below to confirm which one:- Bluetooth Compatibility: Only V2 Bluetooth machines are compatible with the Spinfire app. The standard V2 model does not support Bluetooth.
- Release Date: V2 Bluetooth machines were first released in 2024.
- USB Port: Remove the 4 screws on the control panel and gently lift it. If there is a USB port on the inside, your machine is a V2 Bluetooth. If not, it is a V2.
- Software Version: A V2 Bluetooth machine will have a software version starting with 6 (for example, 6.2.7). A V2 machine will have a software version starting with 5 (for example, 5.1.9).
Model of Ball Machine
To determine whether your Spinfire machine is a Pro 1 or Pro 2, check the control panel. The model name will be printed there.
Visual Reference

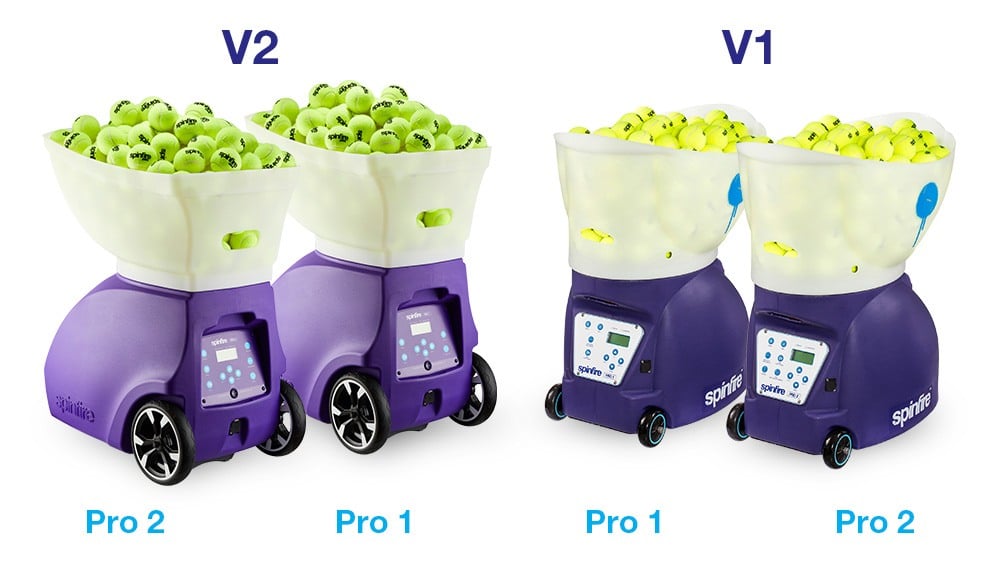

The image below clearly shows the differences between the V1 and V2 versions, as well as the Pro 1 and Pro 2 models:
